Arm kit

Discover your arm kit.

Product#

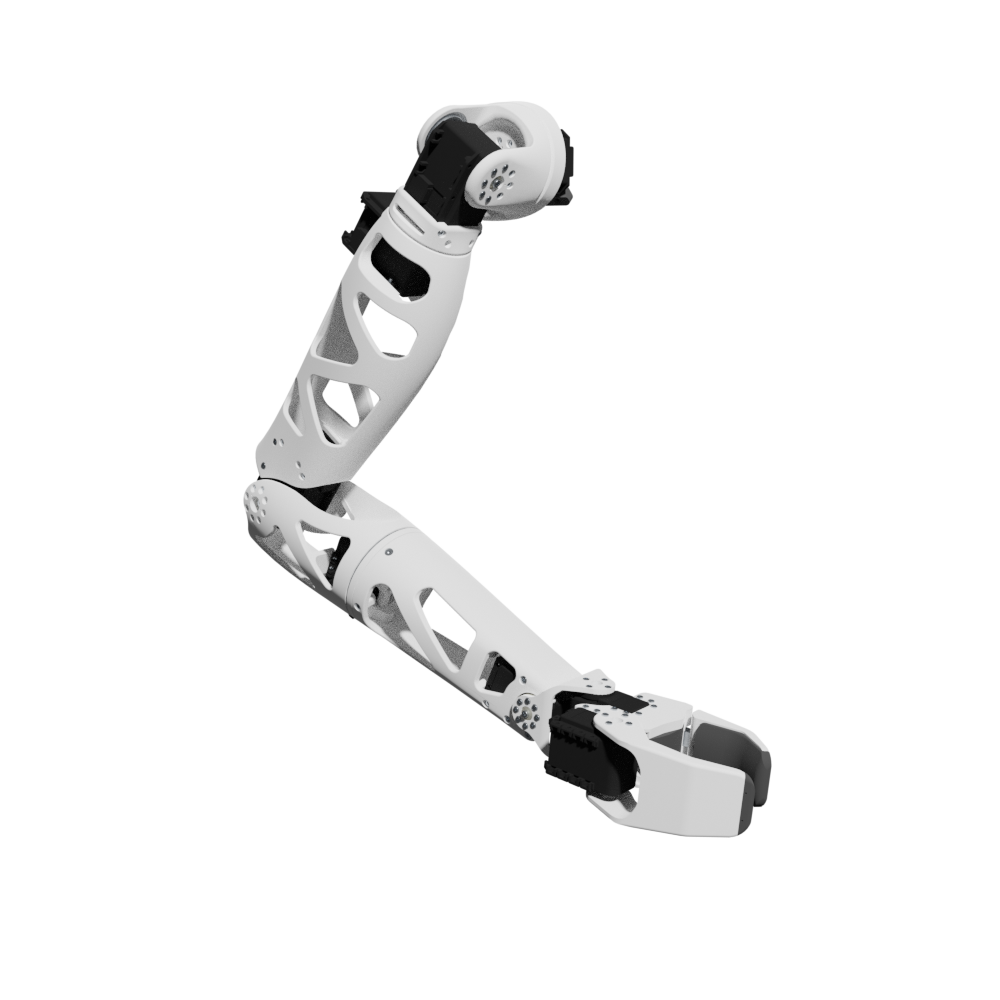

Arm kit
Reachy ports on the back

Reachy’s arm#

drawing

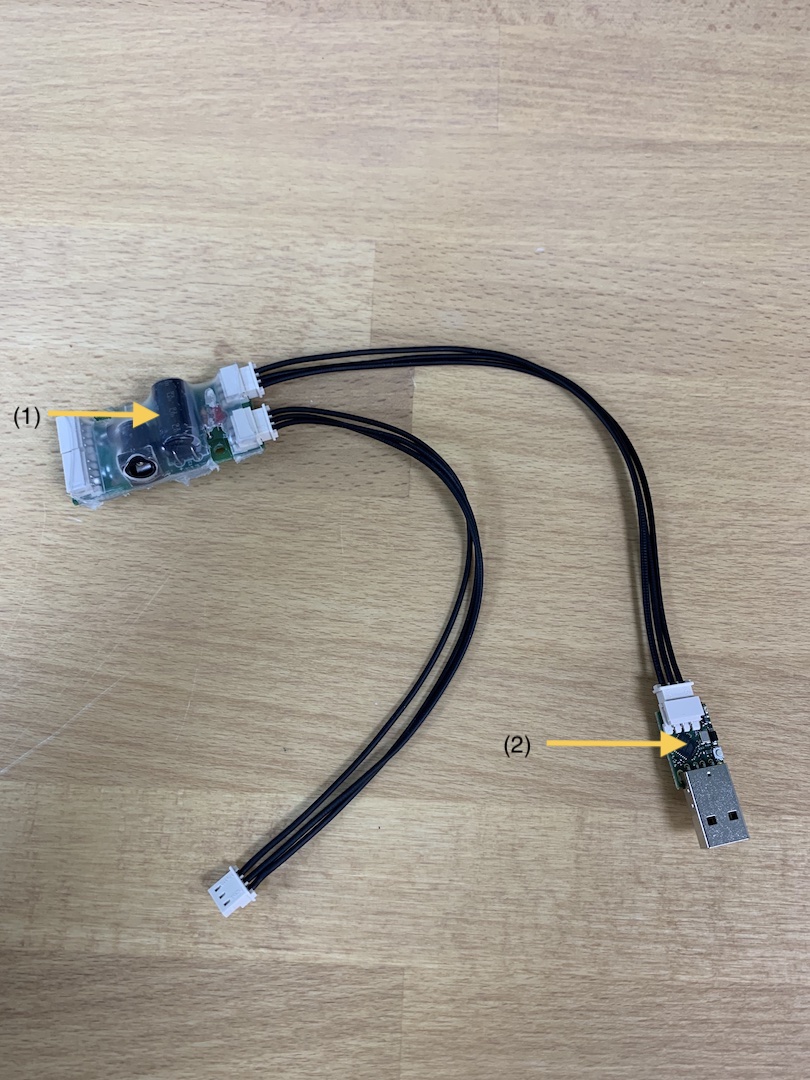

(1) : 12V Power supply board (SMPS2Dynamixel)
(2) : USB to serial board (Need to be connected to your computer)

The arms specifications are available in section Arm mechanical specifications.
